A级LFP化学物质与多层智能BMS相结合，可提供最大的热和电气保护。
专为10多年的日常太阳能依赖而设计，具有高深度放电优化功能。
最多可并行支持15个电池单元，轻松适应不断扩大的家庭能源需求。

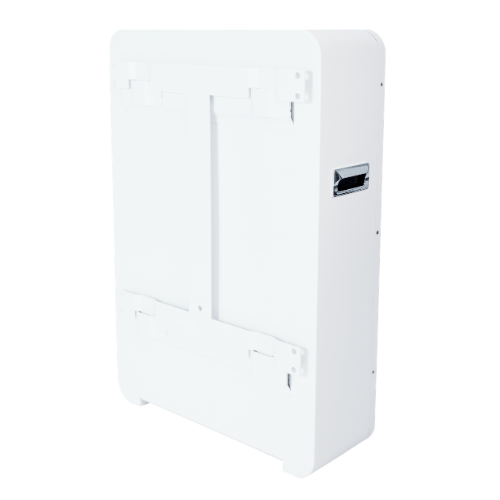

紧凑的壁挂式设计，可将设置时间和占地面积减少高达50%

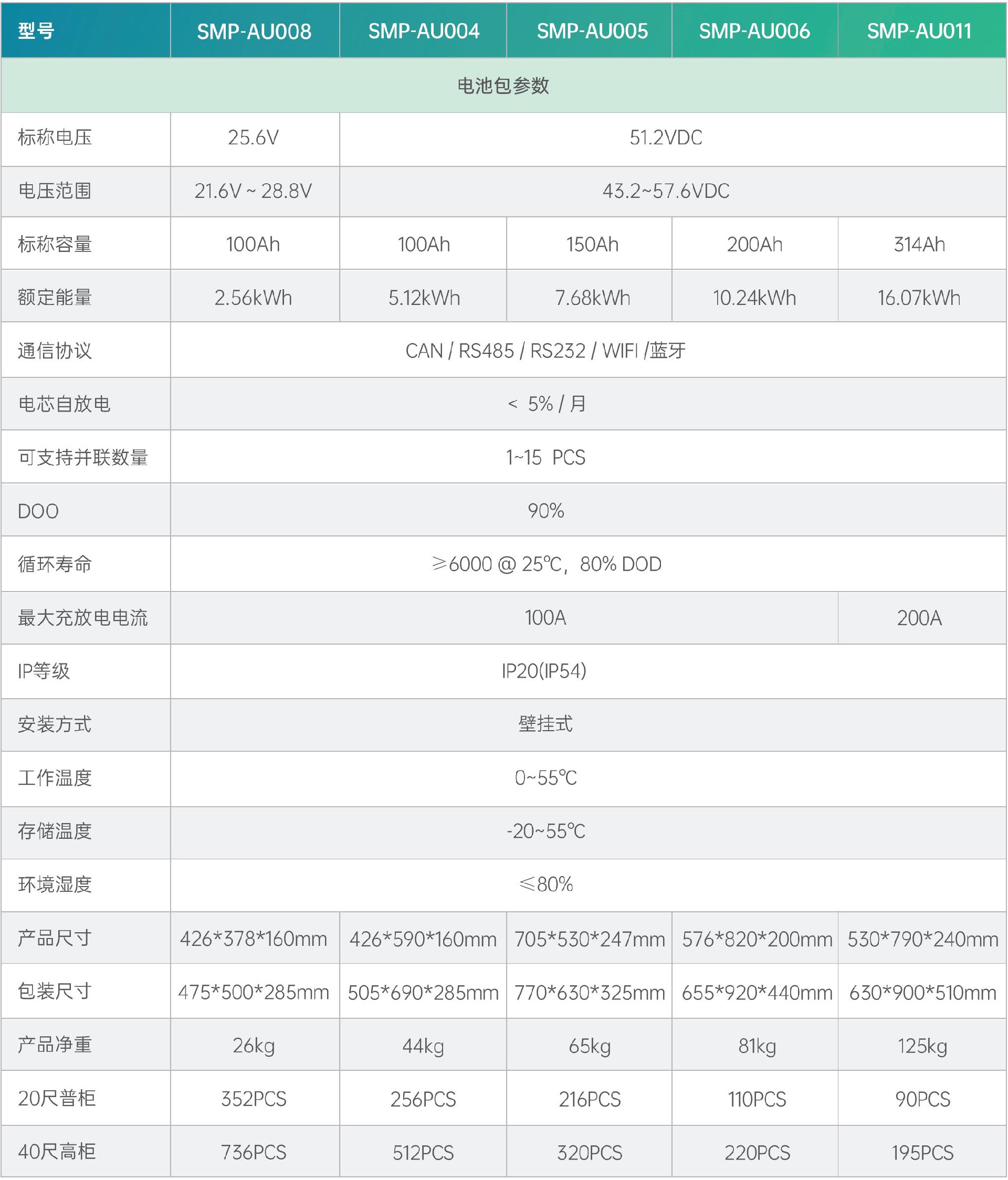

| Standard Voltage | 25.6V |
|---|---|
| Voltage Range | 21.6V ~ 28.8V |
| Nominal Capacity | 100Ah |
| Rated Energy | 2.56kWh |
| Max Charge & Discharge Current | 100A |
| Product Dimension | 426 * 378 * 160 mm |
| Package Dimension | 475 * 500 * 285 mm |
| Net Weight | 26kg |
| 20GP Container | 352PCS |
| 40HQ Container | 736PCS |

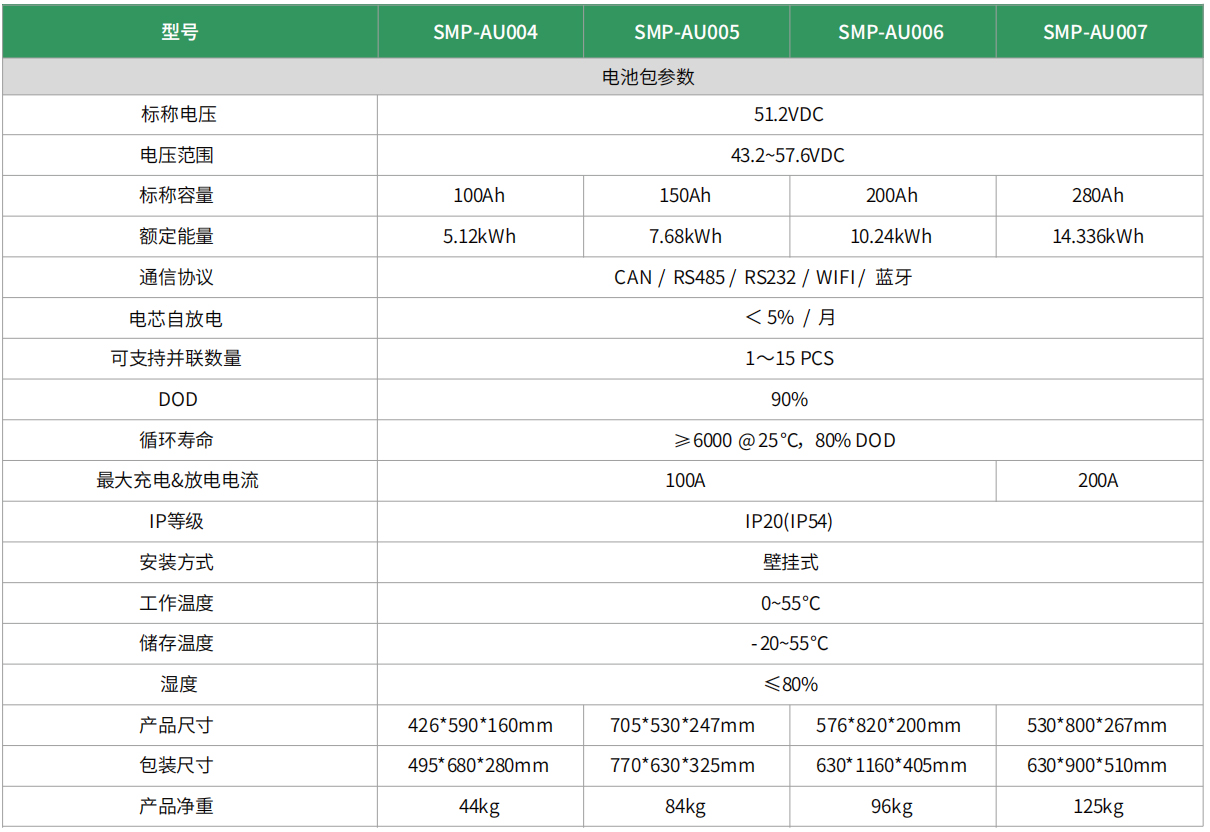

| Standard Voltage | 51.2V |
|---|---|
| Voltage Range | 43.2 ~ 57.6V |
| Nominal Capacity | 100Ah |
| Rated Energy | 5.12kWh |
| Max Charge & Discharge Current | 100A |
| Product Dimension | 426 * 590 * 160 mm |
| Package Dimension | 505 * 690 * 285 mm |
| Net Weight | 45kg |
| 20GP Container | 256PCS |
| 40HQ Container | 512PCS |
| Standard Voltage | 51.2V |
|---|---|
| Voltage Range | 43.2 ~ 57.6V |
| Nominal Capacity | 150Ah |
| Rated Energy | 7.68kWh |
| Max Charge & Discharge Current | 100A |
| Product Dimension | 705 * 530 * 247 mm |
| Package Dimension | 770 * 630 * 325 mm |
| Net Weight | 84kg |
| 20GP Container | 216PCS |
| 40HQ Container | 320PCS |
| Standard Voltage | 51.2V |
|---|---|
| Voltage Range | 43.2 ~ 57.6V |
| Nominal Capacity | 200Ah |
| Rated Energy | 10.24kWh |
| Max Charge & Discharge Current | 100A |
| Product Dimension | 576 * 820 * 200 mm |
| Package Dimension | 655 * 920 * 440 mm |
| Net Weight | 85kg |
| 20GP Container | 110PCS |
| 40HQ Container | 220PCS |
| Standard Voltage | 51.2V |
|---|---|
| Voltage Range | 43.2 ~ 57.6V |
| Nominal Capacity | 314Ah |
| Rated Energy | 16.07kWh |
| Max Charge & Discharge Current | 200A |
| Product Dimension | 530 * 790 * 240 mm |
| Package Dimension | 630 * 900 * 510 mm |
| Net Weight | 117kg |
| 20GP Container | 90PCS |
| 40HQ Container | 195PCS |
| Communication | CAN / RS485 / RS232 / WIFI / Bluetooth |
|---|---|
| Cell Self-Discharge | < 5% / Month |
| Modules Connection | 1 ~ 15 in Parallel |
| Cycle Life | ≥6000 @ 25°C, 80% DOD |
| IP Rating | IP20 (IP54) |
| Installation | Wall |
| Working Temperature | 0 ~ 55°C |
| Storage Temperature | -20 ~ 55°C |
| Humidity | ≤ 80% |
