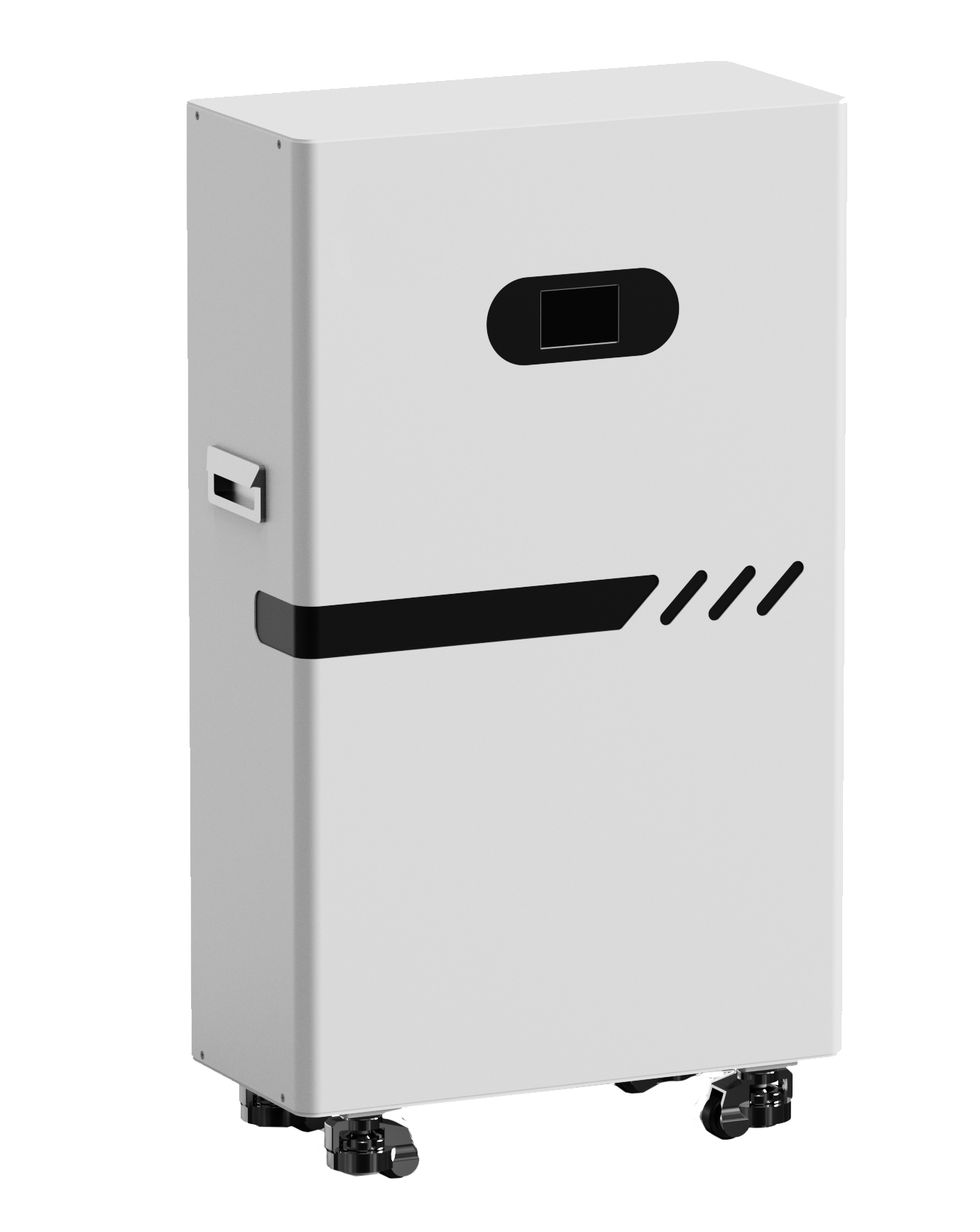

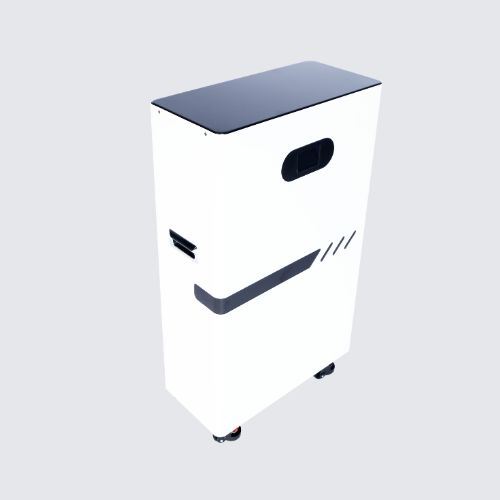

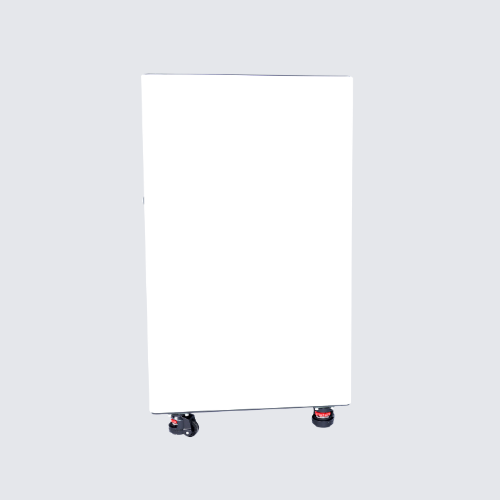

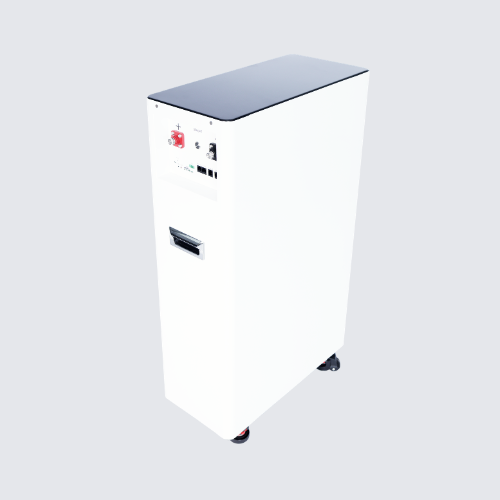

简述：专为地面简易安装设计的高容量低电压家用电池单元，具备长循环寿命及与现有住宅太阳能逆变器系统的无缝兼容性。
容量范围: 16.07kWh ~ 28.67kWh
电池化学: LiFePO4 (Grade A)
循环寿命: ≥6000 Cycles (@25°C, 80% DOD)
可扩展性: Up to 15 Units in Parallel
通 信: CAN / RS485 / RS232 / Wi-Fi / Bluetooth
防护等级: IP20 (IP54 Optional)
设计寿命: 10 Years
A级LFP电池与多层智能BMS配对，可实现最大的热稳定性和电稳定性。
高耐久性设计，可提供超过10年的可靠日常太阳能备份，满足家庭的全部电力需求。
落地式橱柜，配有集成重型脚轮，定位灵活，无墙壁应力。
最多可并行支持15台机组，随着需求的增长，容量可轻松扩展至430kWh+。
| Nominal Capacity | 314Ah |
|---|---|
| Rated Energy | 16.07kWh |
| Product Dimension | 850 * 550 * 250 mm |
| Package Dimension | 1000 * 630 * 470 mm |
| Net Weight | 125kg |
| 20GP Container | 72PCS |
| 40HQ Container | 180PCS |
| Nominal Capacity | 350Ah |
|---|---|
| Rated Energy | 17.92kWh |
| Product Dimension | 1000 * 551 * 240 mm |
| Package Dimension | 1105 * 655 * 465 mm |
| Net Weight | 136kg |
| 20GP Container | 80PCS |
| 40HQ Container | 170PCS |
| Nominal Capacity | 560Ah |
|---|---|
| Rated Energy | 28.672kWh |
| Product Dimension | 1106 * 750 * 280 mm |
| Package Dimension | 1290 * 850 * 500 mm |
| Net Weight | 245kg |
| 20GP Container | 40PCS |
| 40HQ Container | 85PCS |
| Standard Voltage | 51.2V |
|---|---|
| Voltage Range | 43.2 ~ 57.6VDC |
| Communication | CAN / RS485 / RS232 / WIFI / Bluetooth |
| Cell Self-Discharge | < 5% / Month |
| Modules Connection | 1 ~ 15 in Parallel |
| Cycle Life | ≥6000 @ 25°C, 80% DOD |
| Max Charge & Discharge Current | 200A |
| IP Rating | IP20 (IP54) |
| Installation | Floor Standing |
| Working Temperature | 0 ~ 55°C |
| Storage Temperature | -20 ~ 55°C |
| Humidity | ≤ 80% |
