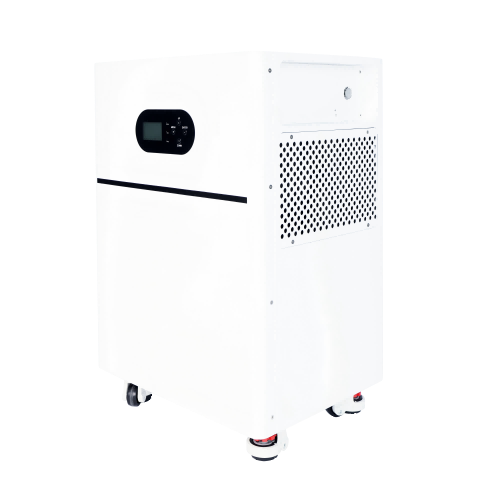

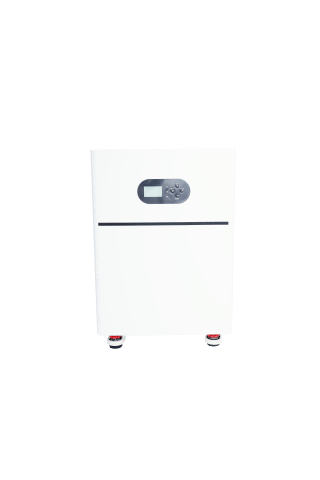

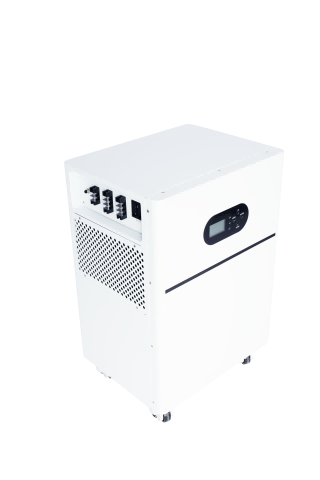

简述：移动多功能一体式ESS，为紧急住宅备份、离网生活和灵活的临时电力需求提供即时即插即用电能源。
额定交流功率： 3 kW ~ 5 kW (3000W / 5000W)
系统能量范围： 2.56kWh ~ 5.12kWh
电 池： LiFePO4 (Grade A)
最大光伏输入： 1600W / 6000W (Max 500VDC)
循 环 寿 命： ≥6000 Cycles (@25°C, 80% DOD)
通 信： RS485 / Wi-Fi
流 动 性： Floor Standing with Caster Wheels
防 护 等 级： IP20
设 计 年 限： 10 Years
集成混合动力逆变器和锂电池存储消除了额外的接线和复杂的安装。
内置的重型脚轮可以轻松地在房间、车库或室内公用设施空间之间重新定位。
A级LFP电池具有全面的BMS保护，可确保长使用寿命和高热安全性。
提供3kW和5kW逆变器额定值，为日常家用电器提供无缝备用电源。
| Battery Parameters | |
|---|---|
| Type | 25.6V 100Ah |
| Rated Voltage | 25.6V |
| Working Voltage Range | 21.6V ~ 28.8V |
| Rated Energy | 2.56kWh |
| PV Input | |
| Max PV OCV | 160VDC |
| MPPT Voltage Range | 30 ~ 128VDC |
| Max Input Power | 1600W |
| Max Charge-Discharge Current | 16A |
| AC Output | |
| Optional Voltage Range | 170V ~ 280Vac(UPS) / 90V ~ 280Vac(APL) / 184V ~ 253VAC(VDE) |
| Output Current | 14A (Term) / 10A (Outlet) |
| Rated Output Power | 3000W |
| Net Weight | 40kg |
| Battery Parameters | |
|---|---|
| Type | 25.6V 200Ah |
| Rated Voltage | 25.6V |
| Working Voltage Range | 21.6V ~ 28.8V |
| Rated Energy | 5.12kWh |
| PV Input | |
| Max PV OCV | 160VDC |
| MPPT Voltage Range | 30 ~ 128VDC |
| Max Input Power | 1600W |
| Max Charge-Discharge Current | 16A |
| AC Output | |
| Optional Voltage Range | 170V ~ 280Vac(UPS) / 90V ~ 280Vac(APL) / 184V ~ 253VAC(VDE) |
| Output Current | 14A (Term) / 10A (Outlet) |
| Rated Output Power | 3000W |
| Net Weight | 56kg |
| Battery Parameters | |
|---|---|
| Type | 51.2V 100Ah |
| Rated Voltage | 51.2V |
| Working Voltage Range | 43.2V ~ 57.6V |
| Rated Energy | 5.12kWh |
| PV Input | |
| Max PV OCV | 500VDC |
| MPPT Voltage Range | 120 ~ 450VDC |
| Max Input Power | 6000W |
| Max Charge-Discharge Current | 22A |
| AC Output | |
| Optional Voltage Range | 170V ~ 280Vac(UPS) / 90V ~ 280Vac(APL) |
| Output Current | 22A(Term) / 10A(Outlet) |
| Rated Output Power | 5000W |
| Net Weight | 63kg |
| AC General | |
|---|---|
| Input Voltage | 220 ~ 240VAC |
| Output Voltage | 220 / 230 / 240VAC |
| Input Current | 14A (For 105/106) / 22A (For 107) |
| Frequency | 50Hz / 60Hz |
| General Parameters | |
| Communication | RS485 / WIFI |
| Working Altitude | ≤ 2000m |
| Cooling | Natural |
| Installation | Floor Standing |
| IP Rating | IP20 |
| Cycle Life | ≥ 6000 @ 25°C, 80% DOD |
| Working Temperature | 0 ~ 55°C |
| Storage Temperature | -20 ~ 55°C |
| Humidity | ≤ 80% |
| Product Dimension | 450 * 671 * 350 mm |
| Package Dimension | 550 * 770 * 570 mm |
| 20GP Container | 112PCS |
| 40HQ Container | 224PCS |
